In SimpliPlan, users can use the Edit walls function to alter walls at any time. Use Edit walls to offset internal walls, split a wall into two parts, delete a wall, or change a wall's angle.
| Note: Users must be in 2D view. |
In Room mode:
- Click the Edit walls icon:
With the Edit wall tool selected, users can:
-

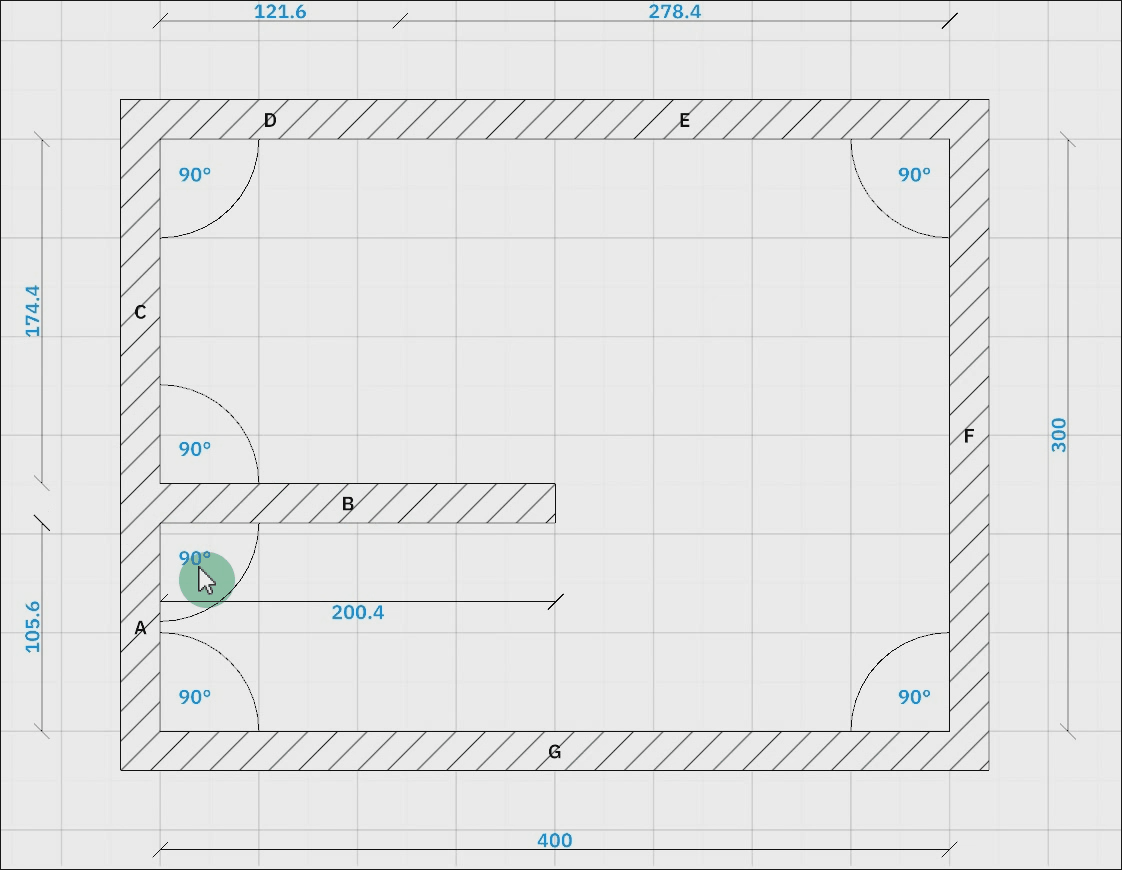

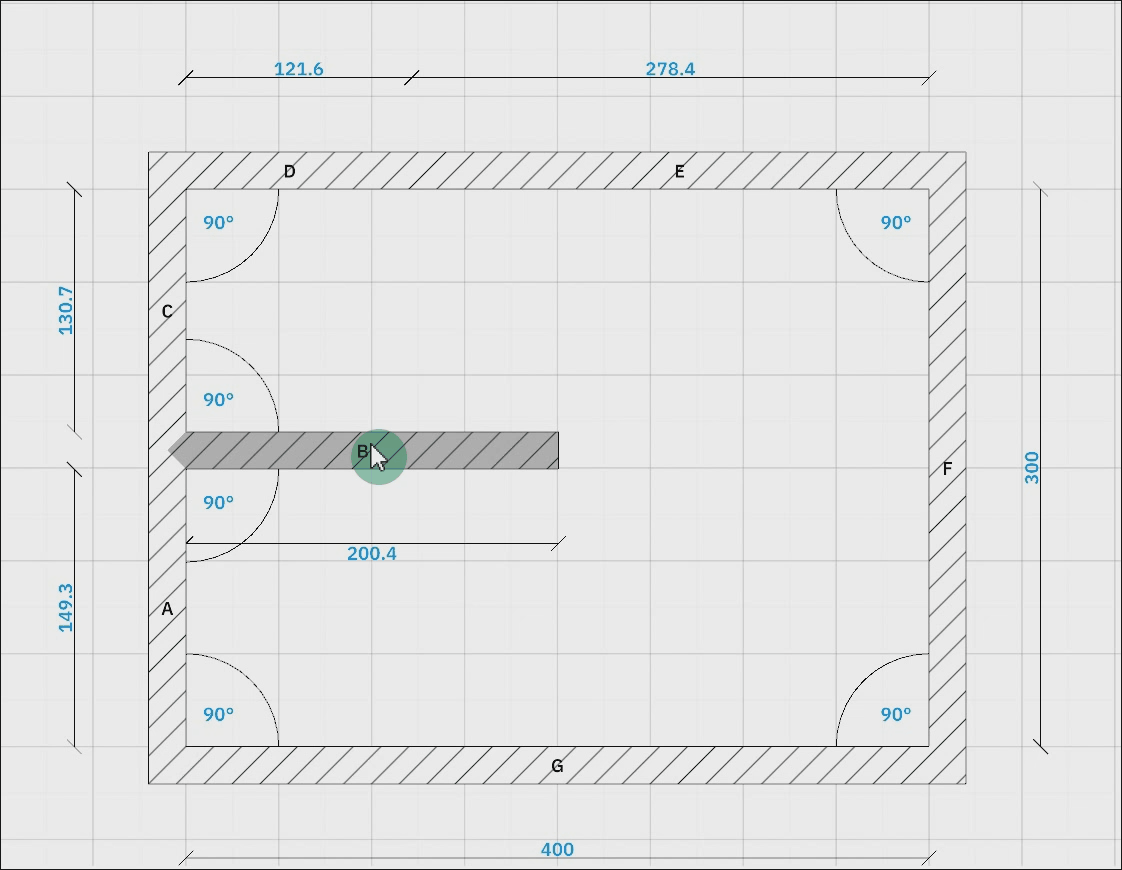

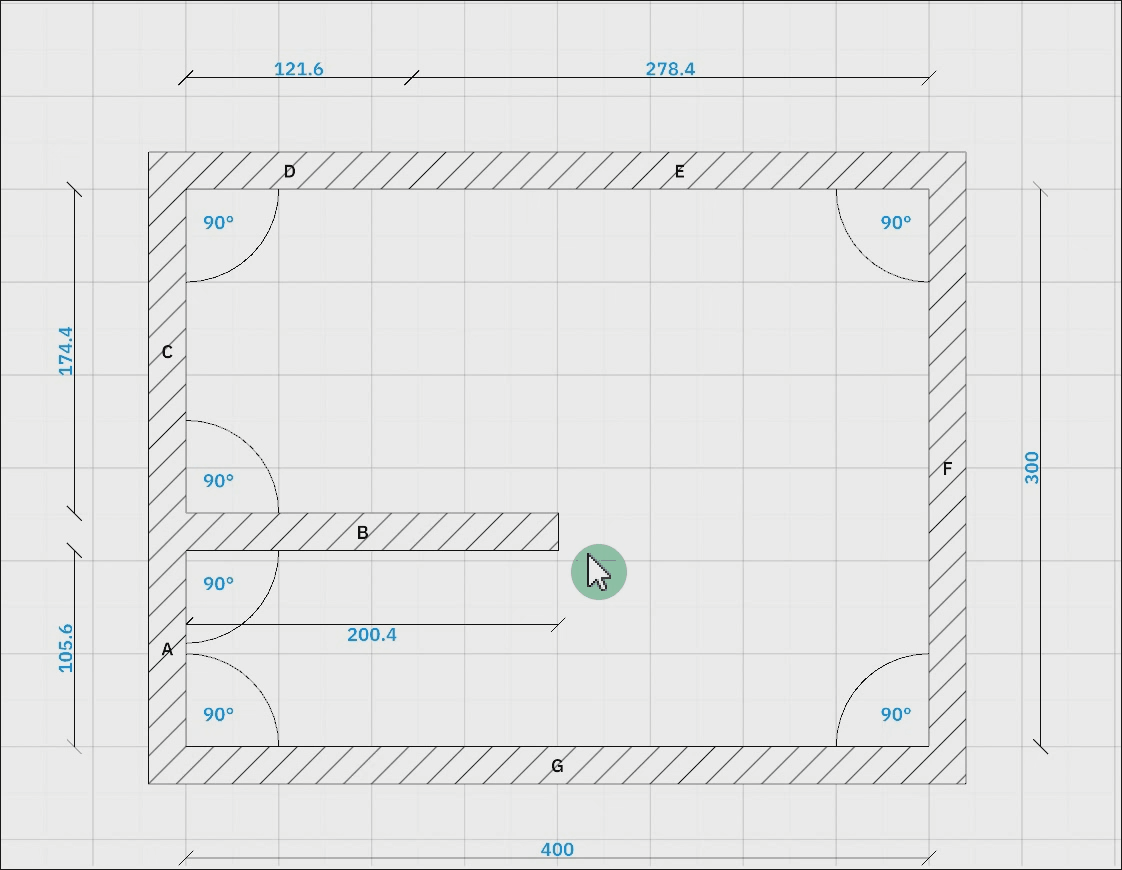

Click and drag to move walls.
-
Double-click a wall to add a new point. For example, to create a bend in a wall, or add multiple points to create a cupboard or utility room.
-
Left-click a wall and press the Delete key on the keyboard to delete walls, or, in the Tool control dialogue box, click the Delete icon:
-

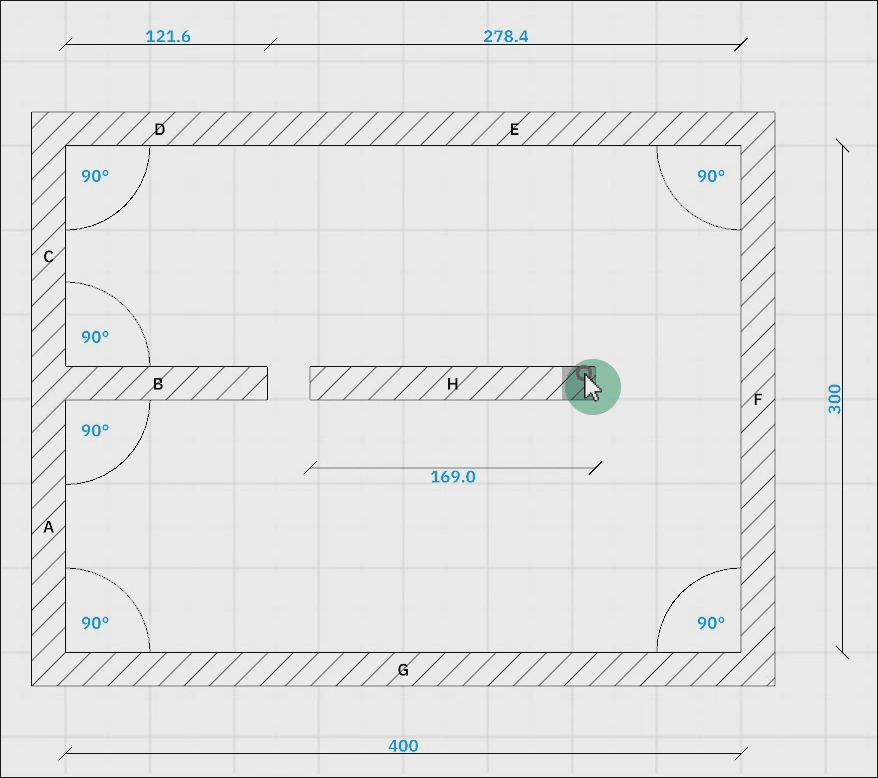

Drag the end of one wall to another wall end to connect together.
-
Left-click a wall measurement or angle, displayed as blue text, and enter a new value in the field to alter wall dimensions and angles.
- In the Tool control dialogue box, users can click the Cancel or Apply icons to end the process:
